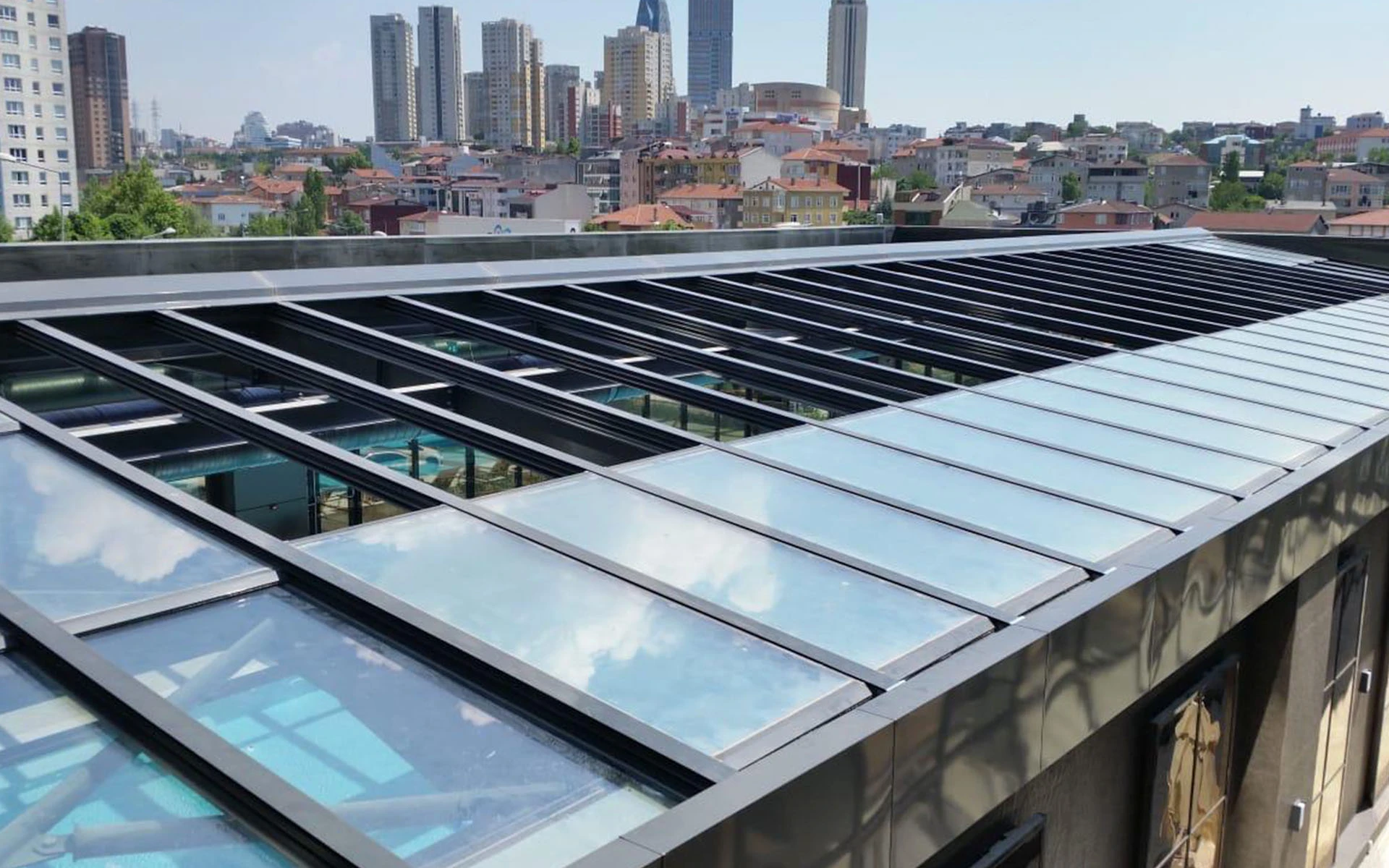

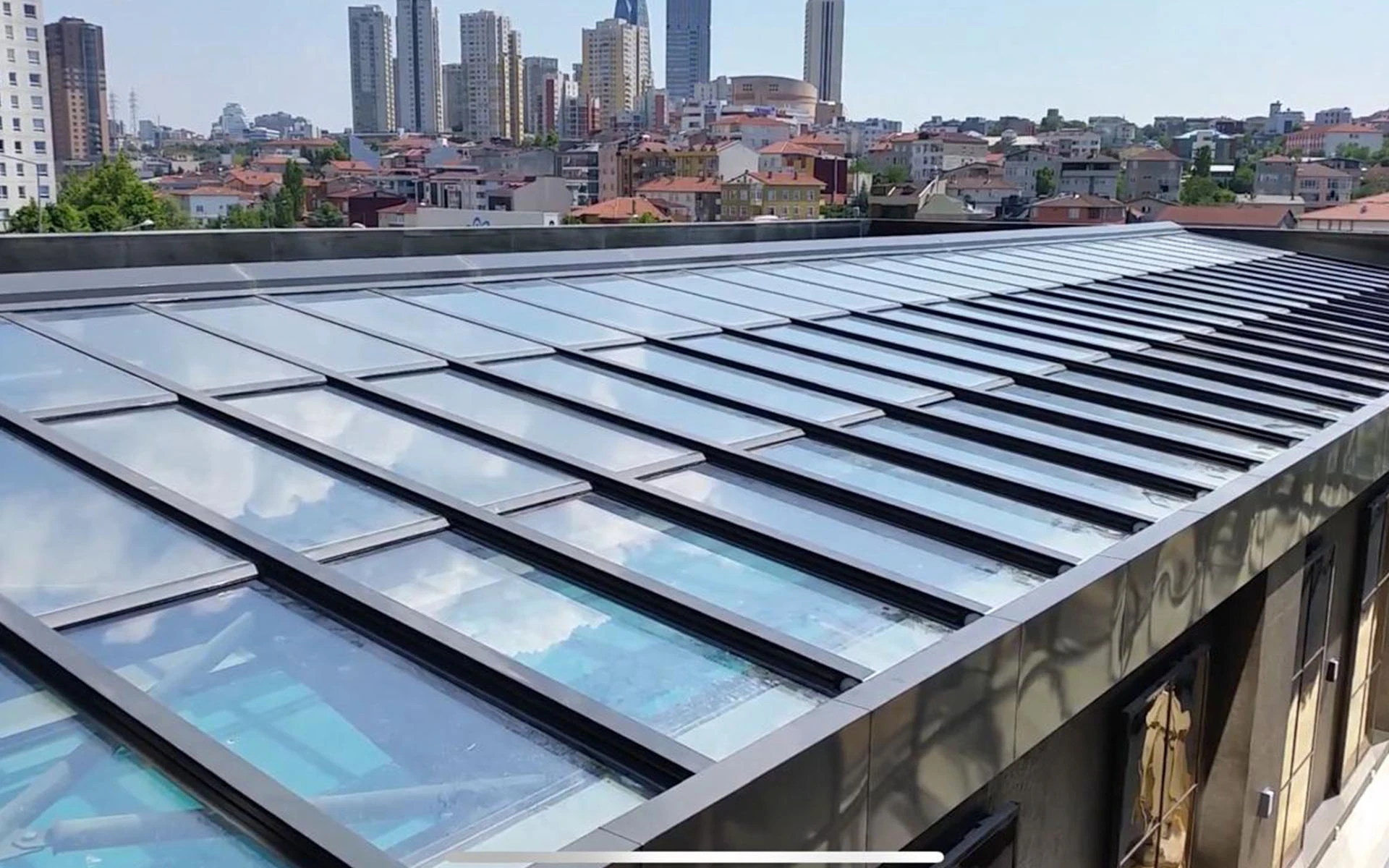

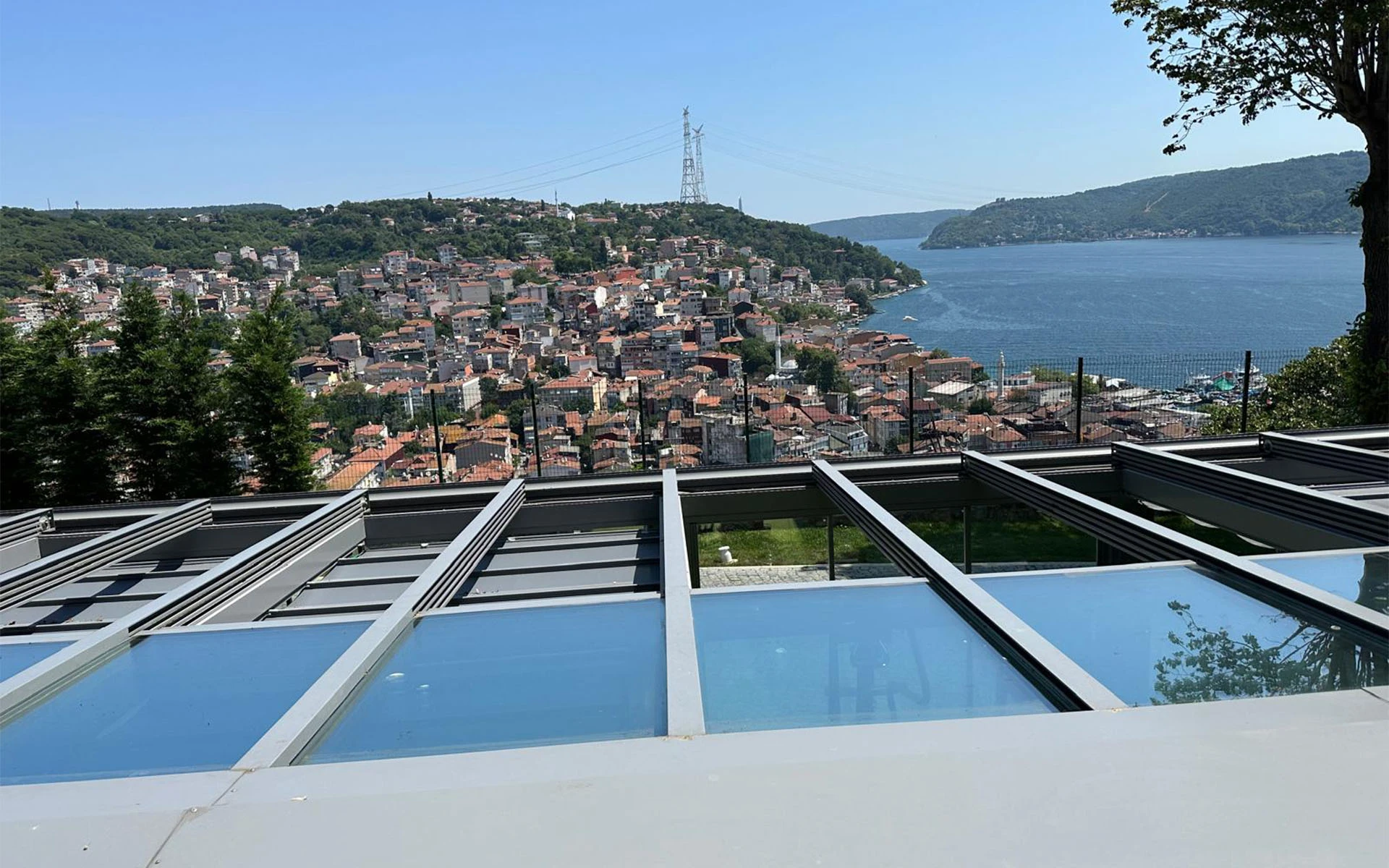

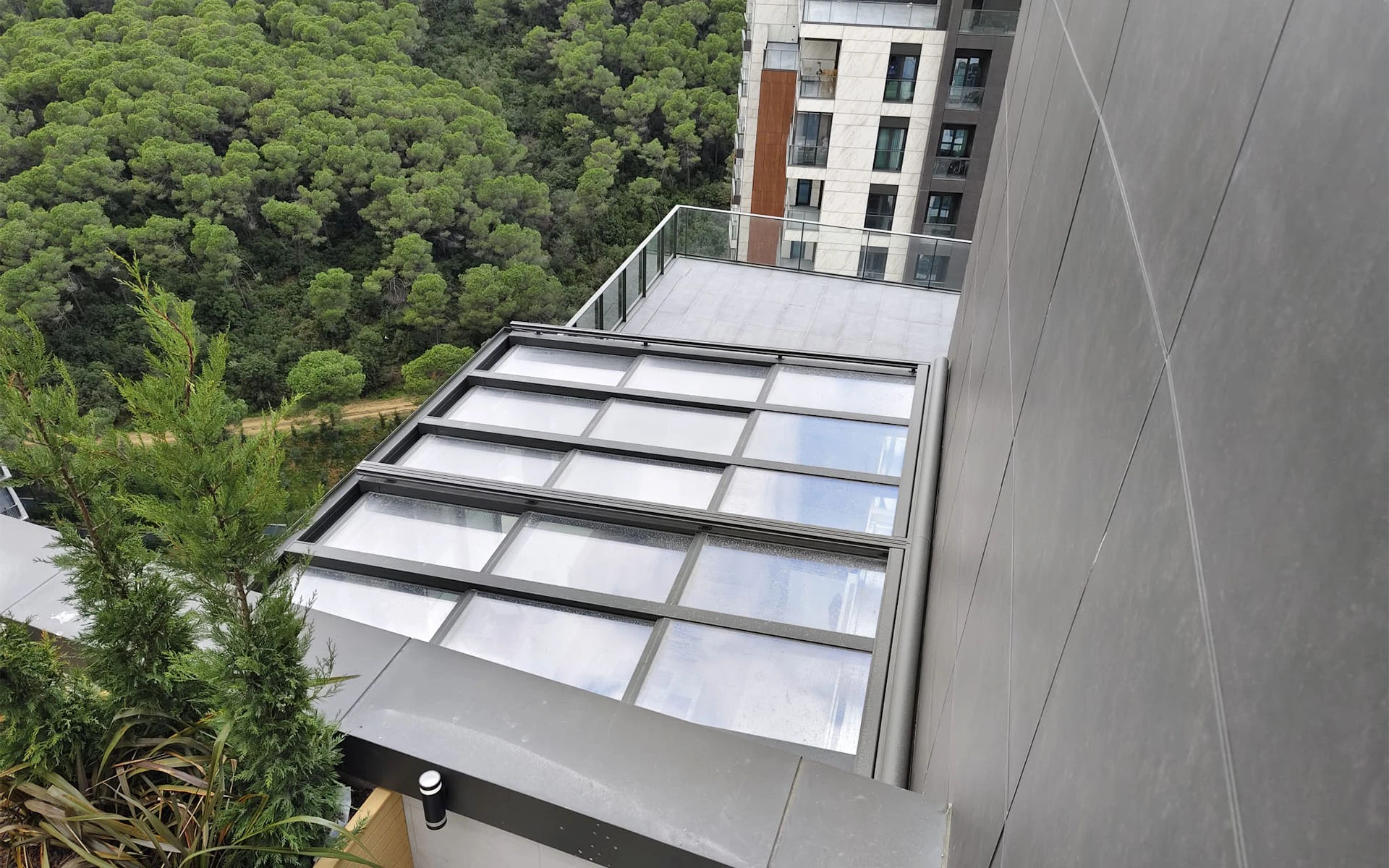

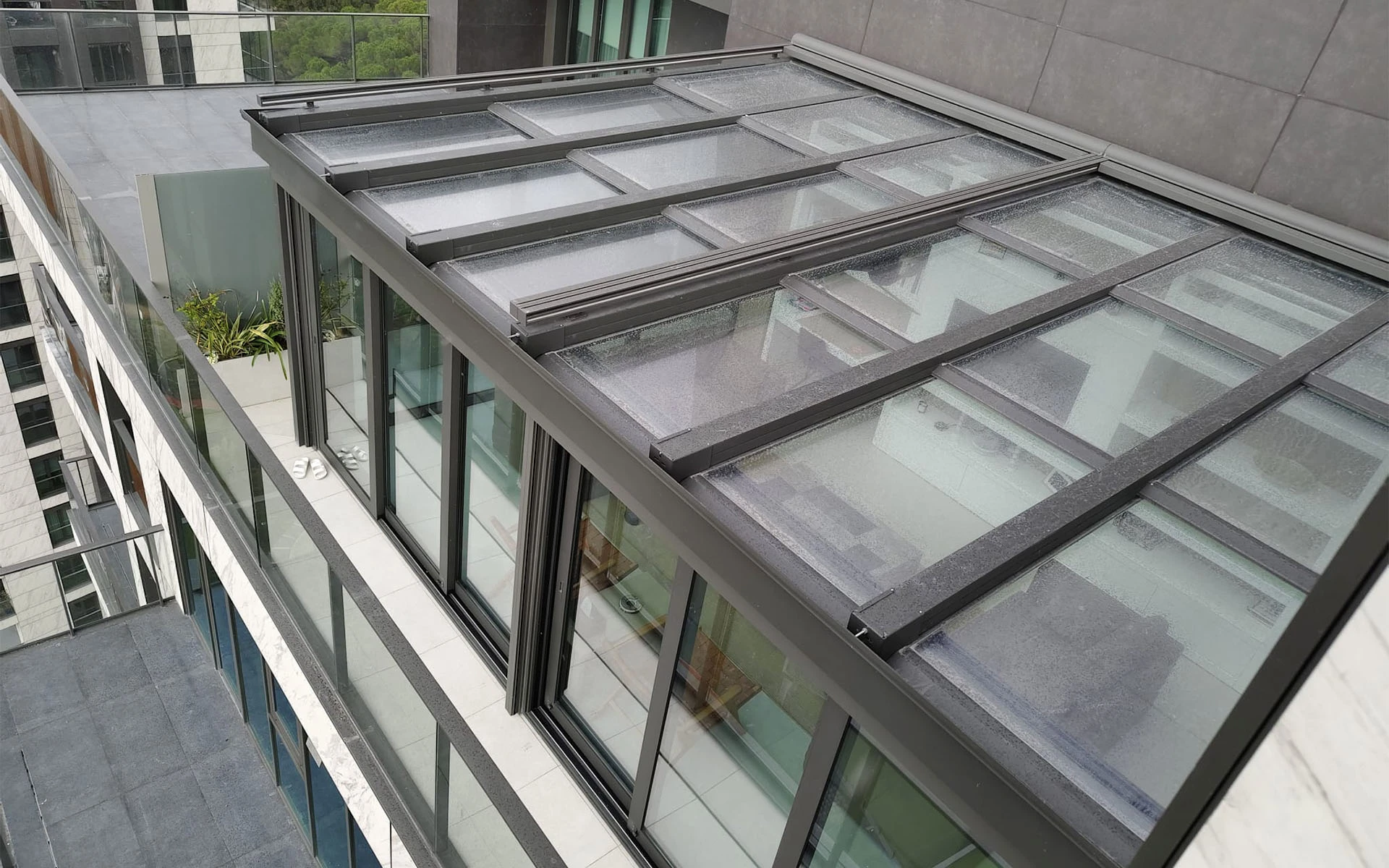

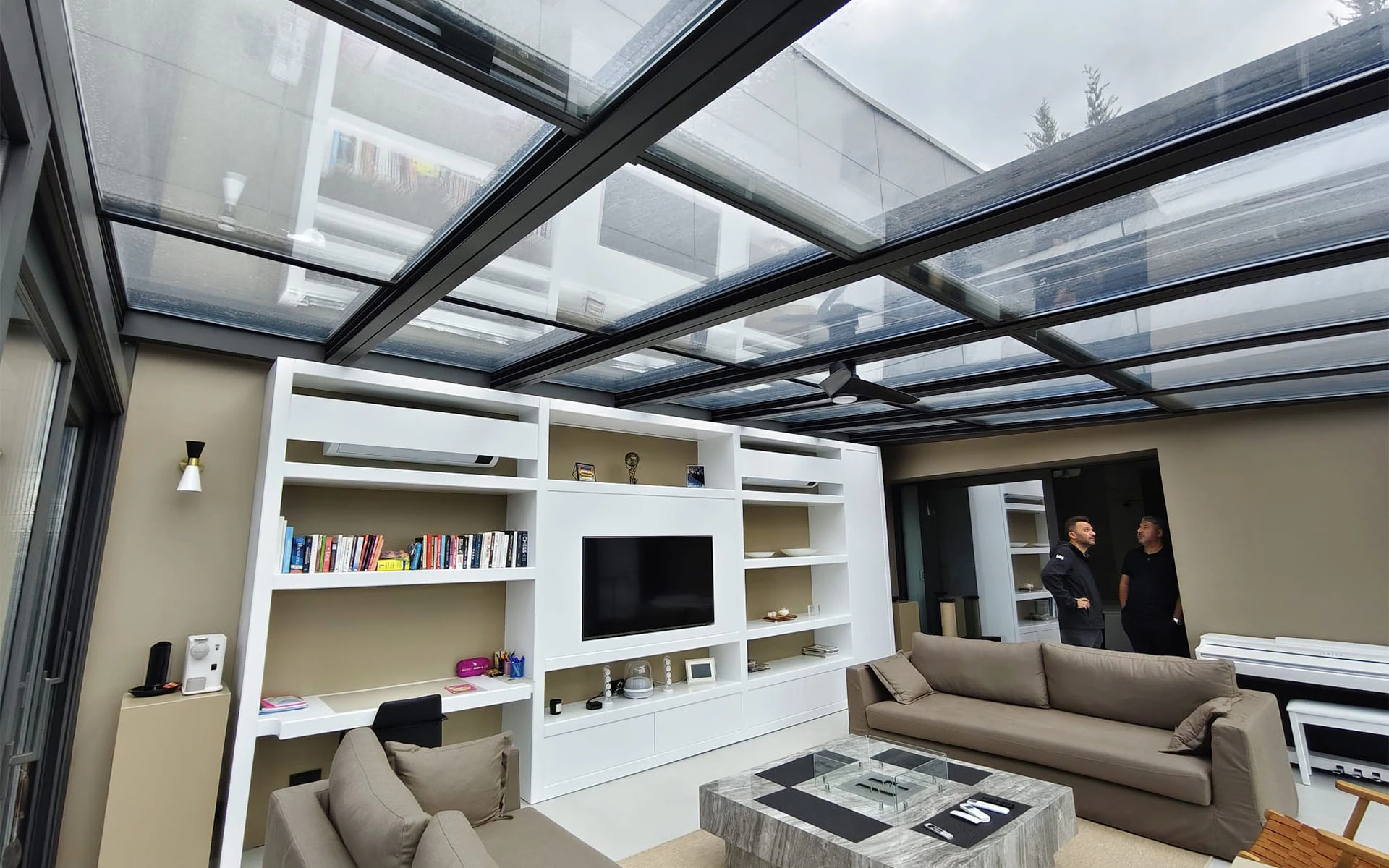

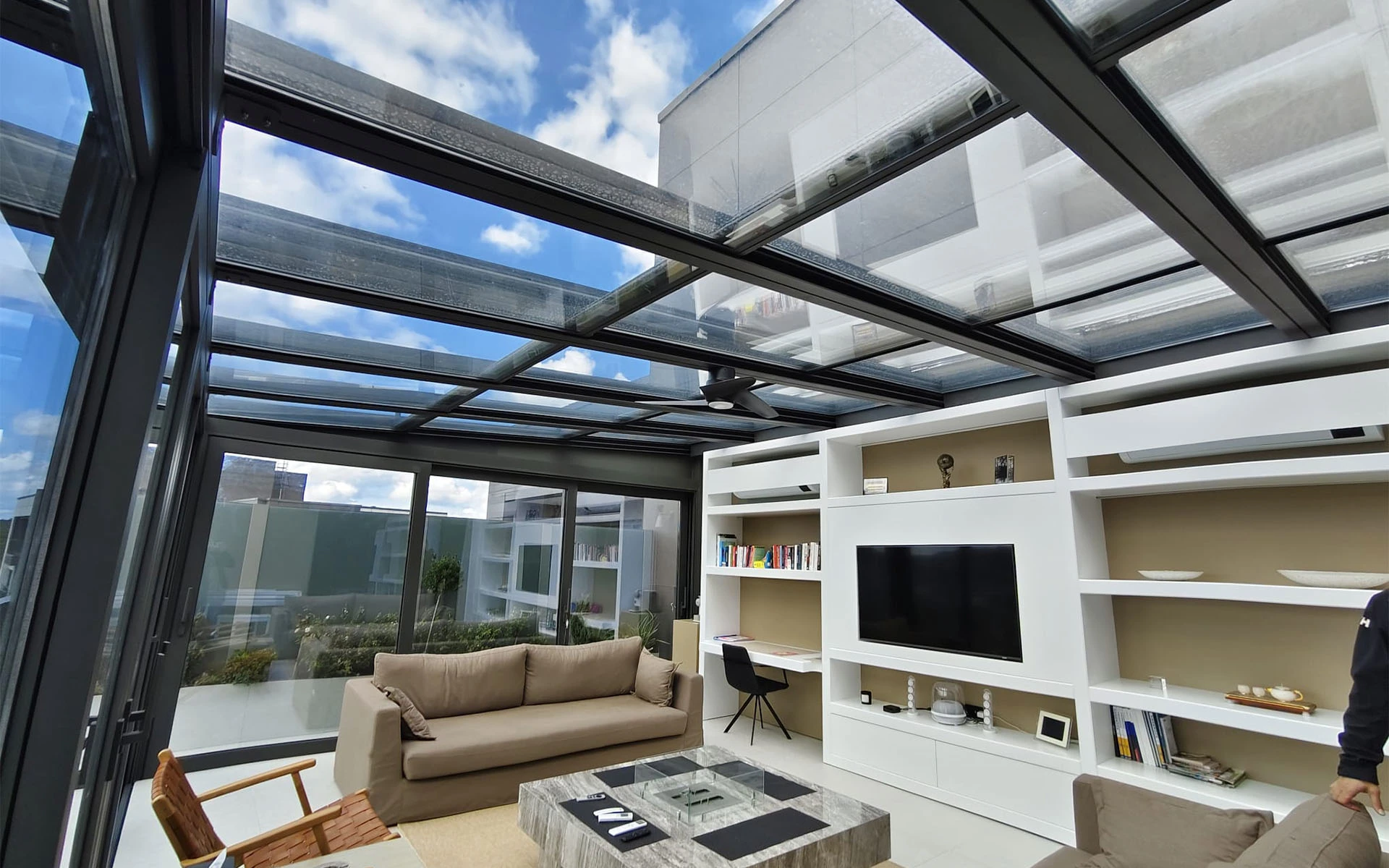

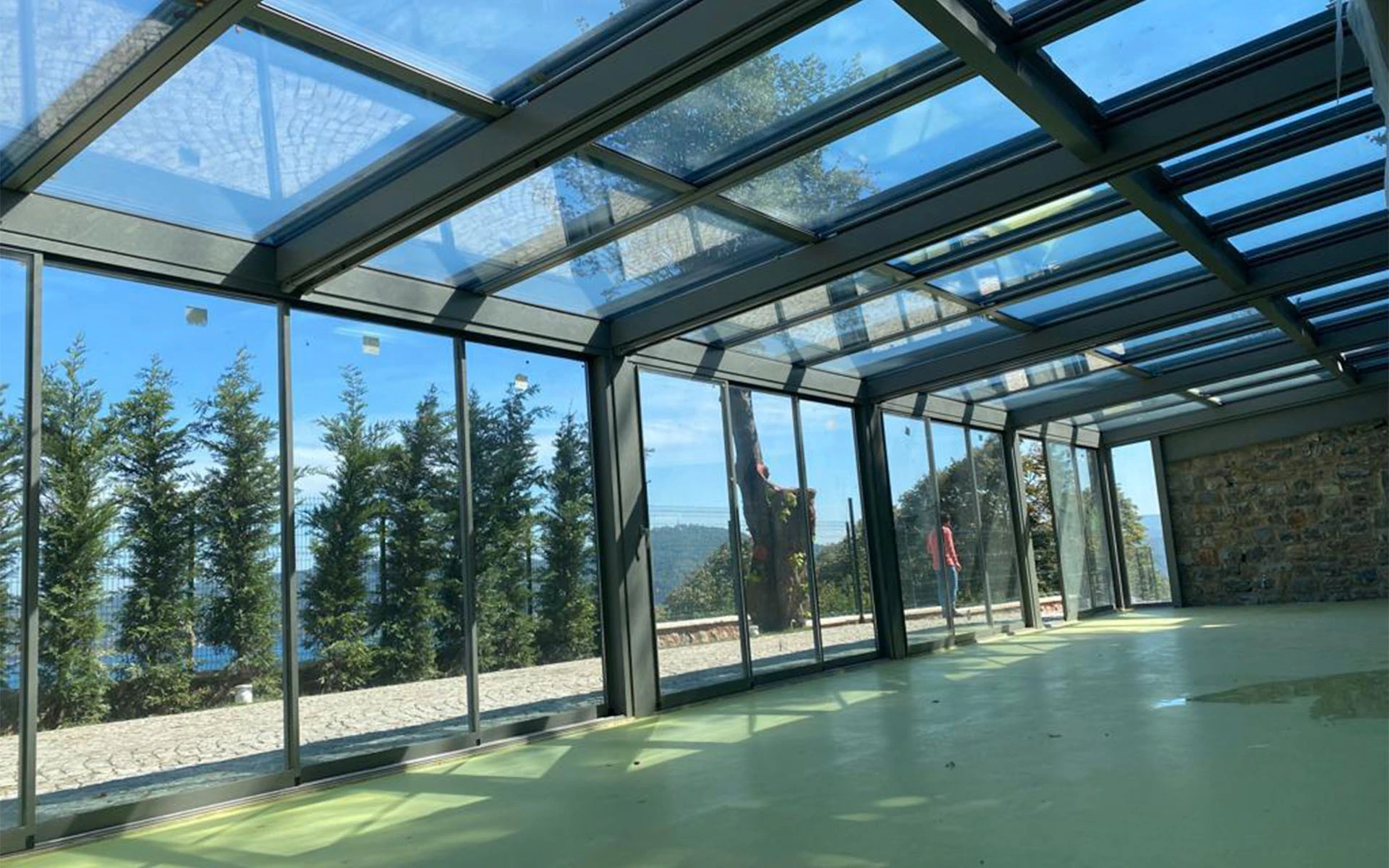

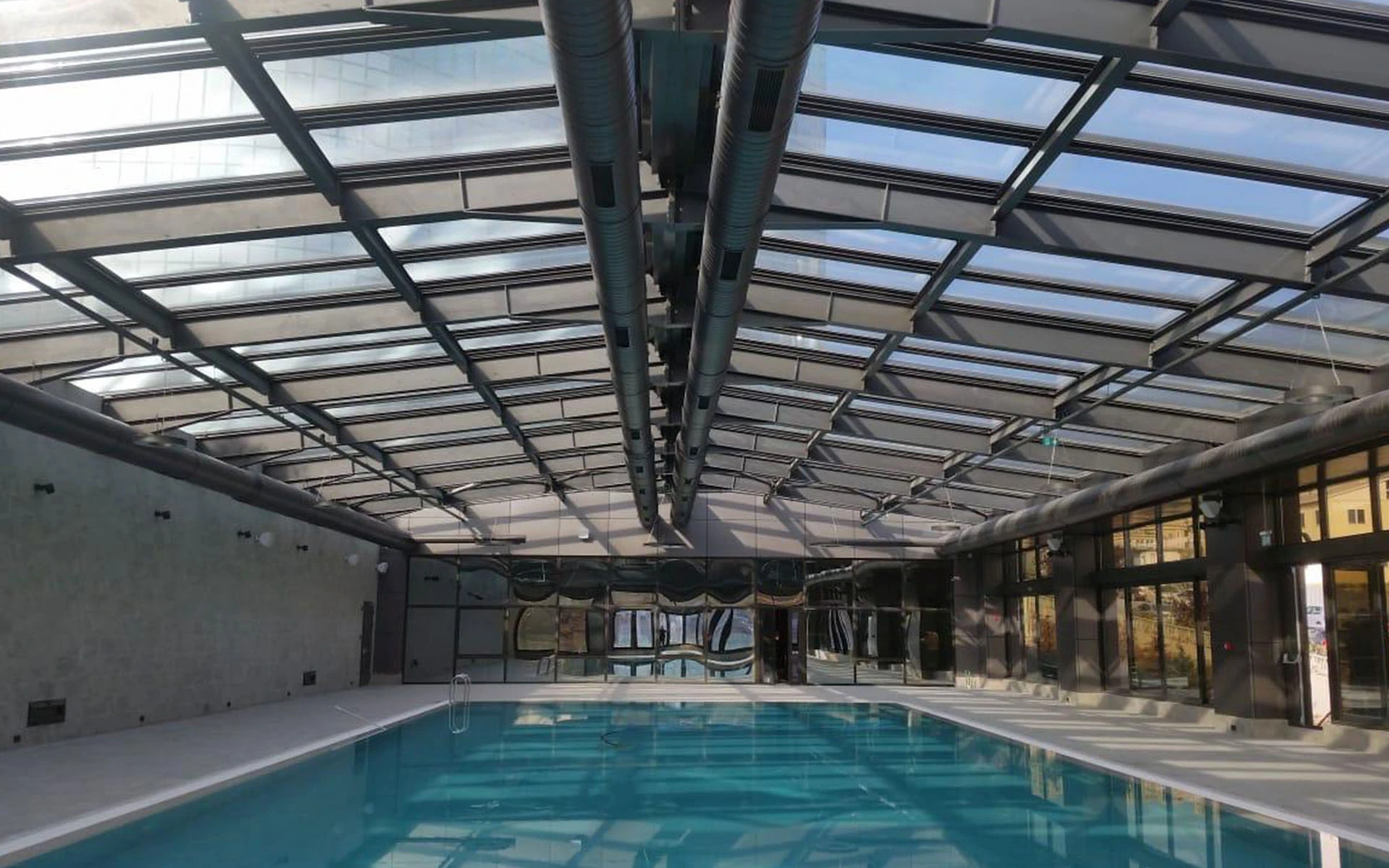

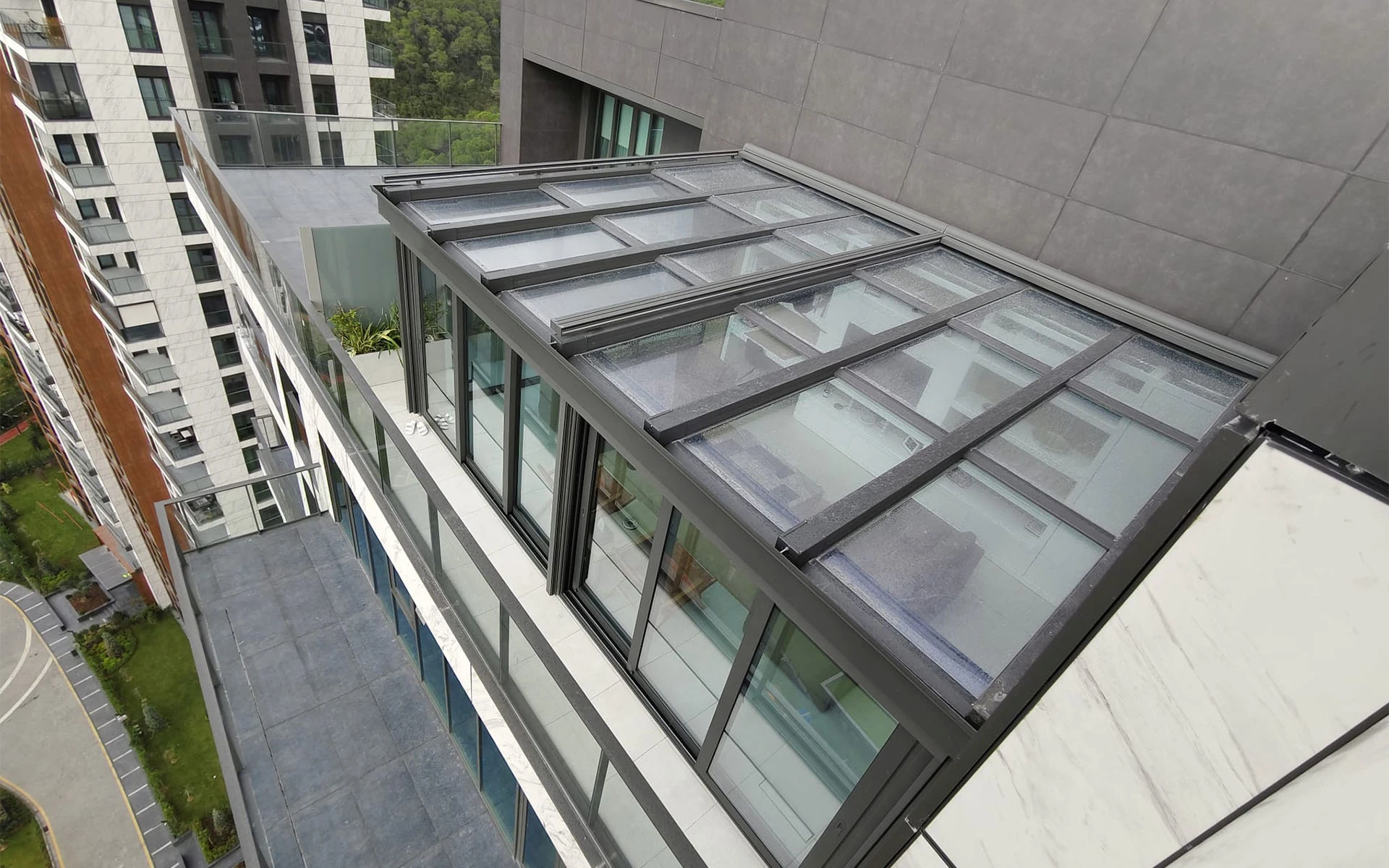

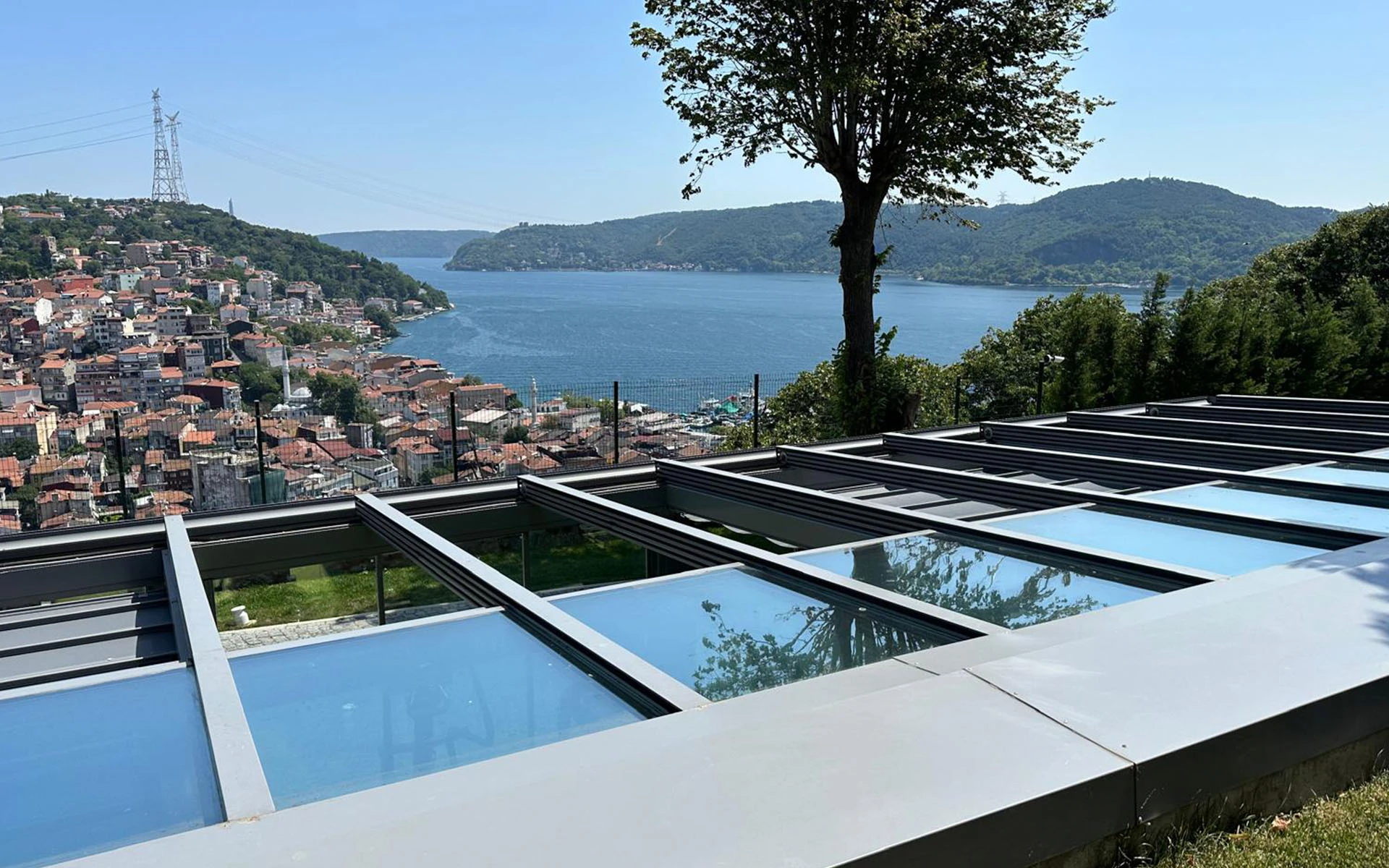

This system is composed of single-pitched, gable, and hip roof forms. The working principle of the system is based on the movement of the panel at the eaves, which opens and gathers under a fixed module. The most common application areas of these systems are swimming pools, shopping malls, balcony enclosures, wedding halls, hotels, and restaurants.

Technical Specifications:

• Special aluminum profiles are used in the construction of the system, and polycarbonate or glass materials are used as the covering material.
• Thanks to the special aluminum profiles, there is no need for an additional supporting structure, providing a more aesthetic appearance to the spaces and reducing construction costs.
• Vertical axis spacings of the system can be 105 cm, 125 cm, 160 cm, 210 cm, or 300 cm.
• The roof panels can be manually or motorized opened and closed remotely at rates of 100%, 80%, 75%, 66%, and 50%.
• The system can operate manually or with a motor.
• The system can be opened downward from the ridge or, if desired, upward toward the ridge.
